6EDL04I06PT Gate Driver IC

6EDL04I06PT 600V Three-Phase Gate Driver IC

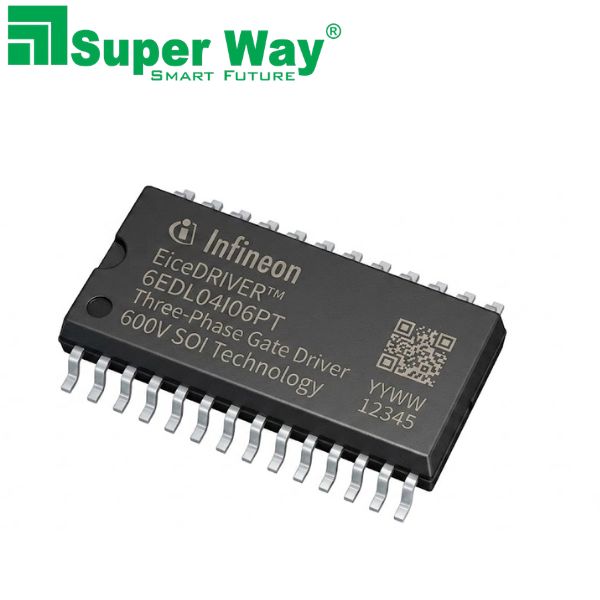

The is a 6EDL04I06PT Gate Driver IC  high-voltage three-phase gate driver integrated circuit designed for power electronics applications that require reliable control of high-side and low-side power semiconductor switches. It is intended for use in three-phase inverter and motor-drive systems where efficient and coordinated switching control is required.

The device is designed to drive three-phase bridge configurations commonly used with power MOSFETs and IGBTs. By integrating multiple gate-driver channels into a single IC, the 6EDL04I06PT Gate Driver IC can help simplify the control circuitry required for three-phase power conversion systems.

A three-phase gate driver is an important component in inverter and motor-control applications. It receives control signals from a microcontroller, DSP or other control circuit and translates those signals into appropriate gate-drive signals for the power switches. This allows the power stage to control the current supplied to a three-phase motor or other load.

The 6EDL04I06PT Gate Driver IC is designed for high-voltage applications with a rated blocking voltage of up to 600V. This makes it suitable for compatible high-voltage three-phase inverter architectures used in industrial and consumer power electronics.

The IC incorporates high-side and low-side driver circuits for three-phase bridge operation. The high-side driver sections are designed to control the upper power switches, while the low-side driver sections control the lower switches in a three-phase inverter bridge.

The device includes integrated bootstrap diode functionality. Bootstrap gate-drive technology is commonly used to provide the floating supply voltage required for high-side MOSFET or IGBT gate control. Integrating this function into the driver IC can help reduce the number of external components required in a compatible circuit design.

The 6EDL04I06PT Gate Driver IC also provides under-voltage lockout functionality. UVLO protection helps prevent the power switches from being driven incorrectly when the driver supply voltage falls below the required operating level. This can help improve system reliability and protect the power stage from potentially damaging operating conditions.

In a typical three-phase inverter system, the IC receives six control signals corresponding to the upper and lower switching devices of the three inverter phases. The driver then provides the appropriate gate-drive outputs to control the connected power semiconductor devices.

The 6EDL04I06PT Gate Driver IC can be used with compatible IGBT or MOSFET power stages. The exact selection of the power semiconductor depends on the application’s voltage, current, switching frequency, thermal requirements and overall power rating.

In three-phase motor-drive applications, the IC can be used as the gate-drive control stage for a power inverter. The inverter converts a DC bus voltage into controlled three-phase power that can be supplied to a motor. By adjusting the PWM control signals, the motor controller can regulate speed, torque and direction.

The device can also be used in industrial inverter systems. Industrial equipment often requires reliable three-phase power conversion and motor control, making integrated gate-driver ICs an important part of the overall power electronics architecture.

In air-conditioning systems, three-phase gate drivers may be used in inverter-based compressor and fan motor control systems. The gate driver controls the power switching devices that regulate the motor’s operation according to the control signals generated by the system controller.

The 6EDL04I06PT Gate Driver IC can also be considered for compatible power conversion systems, motor controllers, inverter equipment and other three-phase power electronic applications.

The IC is supplied in a compact surface-mount package, making it suitable for PCB-based power electronics designs where space efficiency and integrated functionality are important.

When designing a circuit using the 6EDL04I06PT Gate Driver IC, engineers should carefully follow the manufacturer’s datasheet recommendations regarding supply voltage, input signals, gate-drive outputs, bootstrap components, PCB layout, grounding and switching transients.

Proper PCB layout is particularly important in high-speed power switching circuits. The gate-driver IC should be positioned appropriately relative to the power semiconductor devices, and gate-drive traces should be designed to minimize parasitic inductance and unwanted switching noise.

The bootstrap circuit should also be designed according to the recommended operating conditions. The correct bootstrap capacitor and diode arrangement, along with appropriate PCB layout, can help ensure reliable high-side gate-drive operation.

For electronics repair and replacement applications, the exact part number 6EDL04I06PT should be verified before purchasing. Customers should check the package, pin configuration, electrical specifications and circuit compatibility before replacing an existing gate-driver IC.

A failed gate-driver IC may be caused by power semiconductor failure, excessive voltage, switching transients, poor PCB layout, overheating or other circuit problems. Therefore, technicians should inspect the complete power stage before replacing the driver IC.

The 6EDL04I06PT Gate Driver IC is a suitable component for engineers, technicians and electronics repair professionals working with compatible three-phase inverter and motor-control equipment.
