DB207S Bridge Rectifier Diode

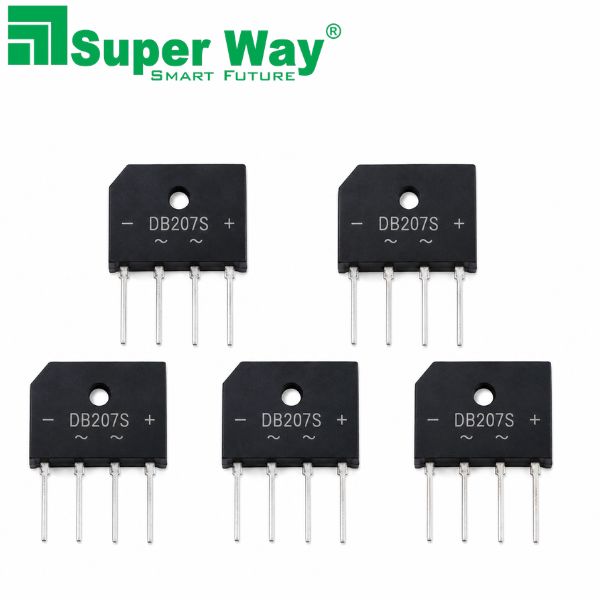

Superway DB207S Bridge Rectifier

The Superway DB207S Bridge Rectifier is a compact 2A 1000V single-phase SMD bridge rectifier diode designed for reliable AC to DC power conversion. Its compact DBS package makes the Superway DB207S Bridge Rectifier suitable for PCB-based electronic equipment where space-efficient surface mounting is preferred.

The DB207S is commonly specified with a 2A average rectified current and 1000V repetitive peak reverse voltage. This combination makes the Superway DB207S Bridge Rectifier suitable for many electronic power supply and rectification applications requiring a compact high-voltage bridge rectifier.

The primary function of the Superway DB207S Bridge Rectifier is to convert alternating current (AC) into direct current (DC). It contains four internal diodes arranged in a full-wave bridge configuration. This arrangement allows both halves of the AC waveform to be rectified, producing a DC output suitable for further filtering and regulation.

With a 2A average forward rectified current rating, the Superway DB207S Bridge Rectifier is suitable for low- and medium-power electronic circuits. The actual usable current depends on factors such as ambient temperature, PCB design, thermal conditions, load characteristics and the exact operating environment.

The 1000V reverse-voltage rating gives the Superway DB207S Bridge Rectifier a high voltage capability for suitable rectification circuits. Published specifications identify the DB207S with 1000V maximum repetitive peak reverse voltage and 1000V maximum DC blocking voltage.

The Superway DB207S Bridge Rectifier also provides useful surge-current capability. A published datasheet specifies a 60A peak forward surge current under its defined JEDEC test conditions. This allows the rectifier to withstand short-duration current surges that can occur during circuit startup or capacitor charging.

The referenced DB207S specification lists a maximum forward voltage of approximately 1.1V at 2A. Forward voltage contributes to power dissipation during operation, so suitable thermal conditions should be maintained when the rectifier is operated close to its rated current.

One of the main advantages of the Superway DB207S Bridge Rectifier is its compact DBS / DB-S surface-mount package. The package is designed for PCB mounting and can be suitable for automated electronic assembly. This makes the Superway DB207S Bridge Rectifier useful for compact power supply boards and electronic control circuits.

The Superway DB207S Bridge Rectifier is suitable for a wide range of applications. Common applications include SMPS power supplies, LED drivers, AC to DC converters, battery chargers, inverter circuits, consumer electronics, home appliances, control boards and electronic repair.

For PCB repair, the Superway DB207S Bridge Rectifier can be used as a replacement when the original bridge rectifier requires compatible electrical and physical specifications. Before replacement, users should verify the current rating, reverse-voltage rating, package dimensions, PCB footprint and terminal configuration.

This product is also useful in compact electronic designs where through-hole components may occupy too much board space. Its surface-mount construction provides a convenient option for PCB manufacturers and electronics designers working with compact circuit layouts.

For DIY electronics and development projects, This product can be used in suitable AC to DC conversion circuits. It is important to operate the component within its electrical and thermal specifications and to use appropriate PCB layout and circuit protection.

Published specifications also list an operating junction-temperature range of approximately -55°C to +150°C. The exact thermal performance depends on PCB layout, copper area, ambient temperature and the specific manufacturer’s package construction.

This product  combines a 2A current rating, 1000V voltage rating, compact SMD construction and high surge-current capability in a small bridge rectifier package. These features make it a practical choice for electronic power conversion and PCB repair applications.

Whether you are repairing an SMPS board, designing a compact power supply, manufacturing electronic equipment, replacing a damaged rectifier or working on an AC to DC conversion circuit, the Superway DB207S Bridge Rectifier provides a compact solution for full-wave rectification when correctly matched to the application.

Superway DB207S Bridge Rectifier is suitable for electronics manufacturers, engineers, technicians, repair professionals and hobbyists looking for a compact 2A 1000V SMD bridge rectifier.
