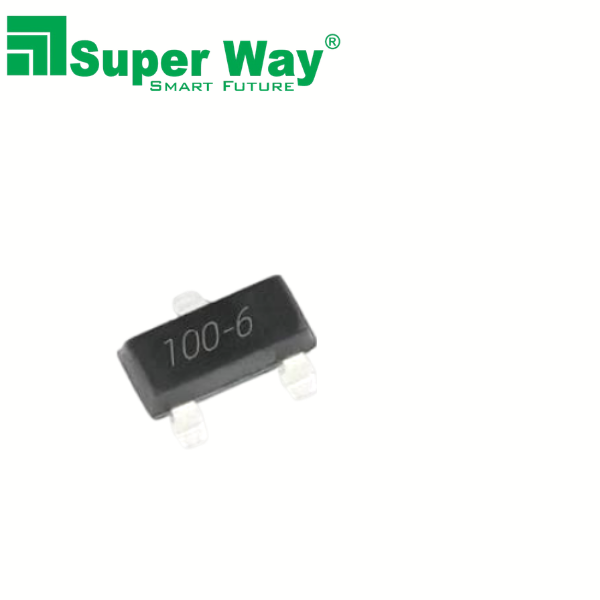

MCR100-6 SOT-23 SCR 400V 0.8A Sensitive Gate Thyristor

MCR100-6 SOT-23 Thyristor is a compact sensitive-gate Silicon Controlled Rectifier (SCR) designed for electronic switching, control, triggering and general-purpose thyristor applications. MCR100-6 SOT-23 Thyristor The MCR100-6 is commonly available in the SOT-23 package and is suitable for compact PCB designs where controlled switching is required. Typical published specifications for SOT-23 MCR100-6 devices include a 400V repetitive peak off-state voltage and 0.8A RMS on-state current.

The MCR100-6 SOT-23 is a three-terminal semiconductor device with Anode (A), Cathode (K) and Gate (G) connections. Unlike a conventional two-terminal diode, an SCR uses the Gate terminal to control its switching behavior. Because of its sensitive gate characteristics, the MCR100-6 can be triggered by relatively small gate current and is suitable for low-power control circuits, electronic switching and interface applications.

MCR100-6 SCR

The MCR100-6 is a Silicon Controlled Rectifier, also called a thyristor.MCR100-6 SOT-23 Thyristor  It is designed to remain in its blocking state until an appropriate triggering condition is applied to the Gate. Once triggered under suitable circuit conditions, the SCR can conduct current between the Anode and Cathode.

This makes the MCR100-6 SOT-23 useful in circuits where a low-power control signal needs to switch or control a higher-voltage circuit. MCR100-6 SOT-23 Thyristor It can be used in electronic control boards, triggering circuits, switching circuits, relay drivers, lamp-control circuits and other general-purpose applications.

The device is particularly useful for compact electronic assemblies because the SOT-23 package occupies less PCB space than many traditional through-hole SCR packages.

SOT-23 Compact Package

The MCR100-6 SOT-23 uses a compact surface-mount package designed for PCB applications. MCR100-6 SOT-23 Thyristor The small package is useful for modern electronic equipment where PCB space is limited.

The SOT-23 package makes the MCR100-6 suitable for:

• Compact PCB designs
• Surface-mount assembly
• Electronic repair
• Switching circuits
• Control boards
• DIY electronics
• Prototyping
• Triggering circuits
• General-purpose thyristor applications

The exact pin arrangement can differ between manufacturers or package versions, so the corresponding datasheet should always be checked before soldering the component to a PCB. For example, one published SOT-23 datasheet identifies the terminals as Cathode, Gate and Anode, while other manufacturers may use a different physical pin order.

400V Voltage Rating

A major feature of the MCR100-6 SOT-23 SCR is its high repetitive off-state voltage rating. Common SOT-23 MCR100-6 datasheets specify VDRM/VRRM of 400V. This allows the device to be considered for suitable higher-voltage switching and control circuits when all operating conditions remain within the manufacturer’s ratings.

The 400V rating does not mean the SCR should automatically be used at 400V in every circuit. MCR100-6 SOT-23 Thyristor Proper voltage margin, current, temperature, surge conditions and circuit protection must be considered during design.

0.8A RMS On-State Current

The MCR100-6 is commonly specified with an RMS on-state current of approximately 0.8A in SOT-23 versions.

This makes it suitable for low-current switching and control applications. MCR100-6 SOT-23 Thyristor The actual usable current depends on PCB layout, thermal conditions, ambient temperature, duty cycle and the manufacturer’s specified thermal characteristics.

Users should not operate the component continuously at its maximum rating without considering heat dissipation and operating conditions.

Sensitive Gate SCR

The MCR100-6 is designed as a sensitive-gate SCR. Published specifications show a gate trigger current in the microampere range, with some versions specifying a maximum IGT of 200µA.

The sensitive gate characteristic makes the device useful for circuits where the available triggering signal is relatively small. MCR100-6 SOT-23 Thyristor It can be interfaced with suitable low-power control circuits when the gate-drive requirements and protection requirements are properly designed.

Electrical Specifications

Typical specifications for an MCR100-6 SOT-23 version include:

• Part Number: MCR100-6
• Device Type: Silicon Controlled Rectifier (SCR)
• Thyristor Type: Sensitive-Gate SCR
• Package: SOT-23
• Number of Pins: 3
• Terminals: Anode, Cathode and Gate
• Repetitive Peak Off-State Voltage: 400V
• RMS On-State Current: 0.8A
• Gate Trigger Voltage: Up to approximately 0.8V in referenced versions
• Gate Trigger Current: Up to approximately 200µA depending on manufacturer/version
• On-State Voltage: Approximately 1.7V maximum in referenced SOT-23 versions
• Operating Junction Temperature: Manufacturer dependent
• Application: Switching, control and triggering circuits

Specifications can vary between manufacturers, so the exact datasheet should be used for final circuit design.

Electronic Switching Applications

The MCR100-6 SOT-23 SCR can be used in various electronic switching applications. When a suitable gate signal is applied, the SCR can transition from its blocking state to its conducting state.

Potential applications include:

• Electronic switching
• Trigger circuits
• Control circuits
• Relay driver circuits
• Lamp control
• Motor control circuits
• Electronic ballast circuits
• Solid-state switching
• Protection and control circuits
• Consumer electronics

Manufacturer documentation also lists applications such as relay and lamp drivers and other line-powered consumer applications.

PCB Repair and Replacement

The MCR100-6 SOT-23 can be useful for electronics technicians working on PCB repair and component replacement. If an existing PCB contains an MCR100-6 or compatible SOT-23 SCR, this component may be considered as a replacement after verifying voltage, current, gate characteristics, pin configuration and package requirements.

It can be useful for repairing:

• Electronic control boards
• Switching circuits
• Trigger modules
• Driver boards
• Consumer electronics
• DIY equipment
• Industrial control circuits

Always compare the original component’s datasheet before replacement.

DIY Electronics and Prototyping

The compact MCR100-6 SOT-23 package makes it useful for electronics hobbyists, students and engineers working on compact prototype circuits.

It can be used for learning and developing SCR-based circuits such as:

• Thyristor switching circuits
• Gate triggering experiments
• Electronic control circuits
• Low-current switching
• Relay control
• Lamp-control projects
• Prototype PCB designs

The device can help users understand SCR operation, including the relationship between the Anode, Cathode and Gate terminals.

Important Pin Configuration Note

The MCR100-6 SOT-23 is a 3-pin device, not a 2-pin component. The three electrical terminals are A (Anode), K (Cathode) and G (Gate). However, the physical pin numbering can vary by manufacturer. For example, one SOT-23 datasheet lists 1 = Cathode, 2 = Gate, 3 = Anode, while another manufacturer’s documentation may use a different arrangement.

Therefore, do not rely only on a generic MCR100-6 pinout when installing the component. MCR100-6 SOT-23 Thyristor Verify the specific manufacturer’s datasheet and PCB footprint.

Superway MCR100-6 SOT-23

The Superway MCR100-6 SOT-23 Thyristor is suitable for electronics repair, switching, control, triggering, MCR100-6 SOT-23 Thyristor DIY projects, prototyping and general-purpose thyristor applications.

Its combination of a compact SOT-23 package, sensitive-gate operation, 400V repetitive voltage rating and 0.8A RMS on-state current makes it suitable for a variety of compact electronic circuits when used within its specified operating limits.

Product Highlights

• SENSITIVE-GATE SCR: Designed for controlled electronic switching and triggering.
• 400V VOLTAGE RATING: Common MCR100-6 SOT-23 versions provide 400V repetitive off-state voltage.
• 0.8A ON-STATE CURRENT: Suitable for low-current switching and control applications.
• SOT-23 PACKAGE: Compact surface-mount package for space-saving PCB designs.
• 3-PIN THYRISTOR: Uses Anode, Cathode and Gate terminals.
• WIDE APPLICATIONS: Suitable for control, switching, triggering, repair and DIY electronics.

Applications

The MCR100-6 SOT-23 SCR can be used in electronic switching circuits, trigger circuits, relay drivers, lamp-control circuits, electronic control boards, consumer electronics, PCB repair, DIY projects, prototyping and general-purpose thyristor applications.

Note: This product should be described as a 3-pin MCR100-6 SOT-23 Thyristor  not a 2-pin component. Always verify the exact pinout and electrical specifications of the supplied manufacturer’s version before use.
