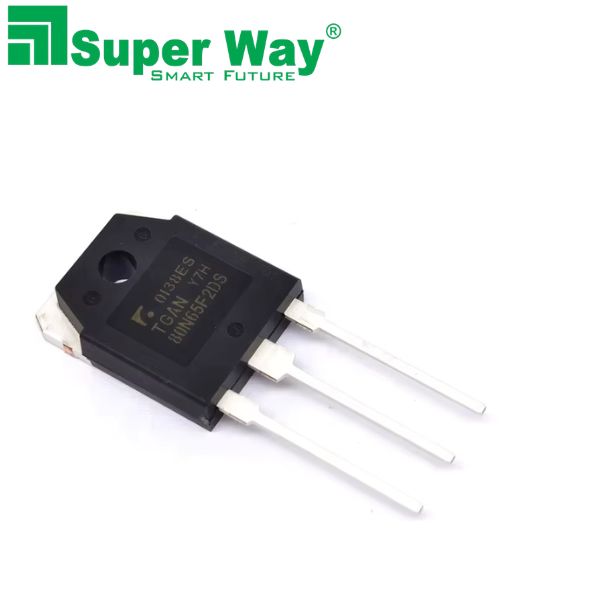

Superway TGAN80N65F2DS 80A 650V Field Stop Trench IGBT – TO-3PN Power Transistor

The  TGAN80N65F2DS 80A 650V IGBT  is a high-voltage, high-current power semiconductor designed for efficient switching and power control applications. TGAN80N65F2DS 80A 650V IGBT This device uses Field Stop Trench IGBT technology to provide reliable switching performance across a wide operating temperature range. It is suitable for demanding power electronics applications where high voltage blocking capability, high current handling, and controlled switching performance are required.

The TGAN80N65F2DS is specified with a 650V collector-emitter voltage rating, making it suitable for high-voltage power conversion and switching circuits. Its continuous collector current is rated up to 80A at a case temperature of 100°C, while the current rating reaches 160A at a case temperature of 25°C under the specified conditions. The device also supports a pulsed collector current of up to 240A according to the manufacturer’s absolute maximum ratings. These ratings make the component useful for high-power switching designs when operated within the recommended electrical and thermal limits.

The Superway TGAN80N65F2DS features Field Stop Trench technology, which is designed to provide low switching losses over a wide temperature range.TGAN80N65F2DS 80A 650V IGBT  Lower switching losses can be beneficial in power conversion equipment because switching efficiency is an important consideration in high-frequency and high-power electronic circuits. TGAN80N65F2DS 80A 650V IGBT The device also has a positive temperature coefficient and is designed to support easy parallel operation, making it suitable for certain high-current power circuit configurations when proper circuit design and thermal management are implemented.

The TGAN80N65F2DS is supplied in a TO-3PN package, a package format commonly used for high-power semiconductor components. The package allows the device to be integrated into power electronic assemblies with suitable heatsinking and thermal management. When used in applications with high current or high switching power, appropriate heatsink selection, thermal interface materials, PCB or busbar design, and airflow should be considered according to the actual operating conditions.

One of the key features of the Superway 80A IGBT is its 650V voltage capability. This makes it suitable for power circuits that require a high-voltage switching device. The device can be used in various power conversion stages where an IGBT is preferred for controlling high-energy electrical loads. It is important to ensure that the actual circuit voltage, current, switching frequency, gate-drive conditions, and thermal environment remain within the component’s specified operating limits.

The TGAN80N65F2DS is designed for applications including UPS systems, inverters, solar power equipment, and welding machines. In inverter applications, IGBTs are commonly used as switching devices for converting and controlling electrical power. In welding machines, high-power IGBTs can be used in inverter-based switching circuits to control energy conversion. Similarly, UPS and solar inverter systems may use high-voltage IGBTs in their power switching stages.

For welding machine repair and maintenance, the Superway TGAN80N65F2DS 80A 650V IGBT can be considered when the original device specification and package match the required application. Before replacement, technicians should carefully compare the original component’s voltage rating, current rating, package type, pin configuration, switching characteristics, gate-drive requirements, and thermal specifications. Matching only the voltage and current rating is not always sufficient for a reliable replacement.

For inverter repair, the Superway TGAN80N65F2DS can be used in suitable high-power switching circuits where its electrical specifications meet the requirements of the original design. The 650V collector-emitter voltage rating provides a high-voltage operating capability, while the 80A continuous collector current rating at 100°C case temperature makes it suitable for high-current applications under appropriate thermal conditions. Designers and repair technicians should always refer to the manufacturer’s datasheet for complete electrical characteristics and application limitations.

The device also features a maximum gate-emitter voltage rating of ±20V, with a specified transient gate-emitter voltage capability under limited pulse conditions. Proper gate-drive design is essential when operating an IGBT. The gate voltage should be controlled carefully, and the recommended gate-drive conditions should be followed to prevent excessive gate stress or unreliable switching operation.

The Superway TGAN80N65F2DS 80A 650V IGBT is also designed for operation across a broad junction temperature range. The manufacturer specifies an operating junction temperature range of approximately -55°C to 175°C. The storage temperature range is specified as -55°C to 150°C. These specifications demonstrate that the device is designed for demanding power electronics environments, although the actual system temperature must always be managed to remain within safe operating conditions.

Thermal management is especially important when using high-power IGBTs. The datasheet lists a maximum junction-to-case thermal resistance of 0.26°C/W for the IGBT under the specified conditions. Proper heatsinking is therefore an important part of the overall circuit design. The actual thermal performance will depend on the heatsink, mounting method, thermal interface, ambient temperature, switching losses, load conditions, and airflow.

Another advantage of the TGAN80N65F2DS is its suitability for parallel operation. The positive temperature coefficient characteristic can help support parallel configurations when the circuit is designed correctly. However, parallel IGBT operation requires careful attention to gate-drive layout, current sharing, parasitic inductance, switching behavior, and thermal balance. Engineers should follow appropriate design practices and verify the complete circuit under real operating conditions.

The Superway 80A 650V IGBT is a practical component option for electronics repair professionals, power electronics technicians, welding machine service centers, inverter repair specialists, and electronic component buyers. It can be useful for replacement and maintenance applications involving compatible high-power switching circuits.

When purchasing or replacing the TGAN80N65F2DS, buyers should verify the complete part number TGAN80N65F2DS and confirm that the package, electrical ratings, pin configuration, and application requirements match the intended equipment. The component should be installed by a qualified technician or experienced electronics professional, particularly in high-voltage equipment such as welding machines, solar inverters, UPS systems, and industrial power converters.

The Superway TGAN80N65F2DS 80A 650V Field Stop Trench IGBT combines high-voltage capability, high-current handling, low switching-loss characteristics, and a rugged TO-3PN package for power electronics applications. Its intended applications include UPS, inverter, solar, and welder systems, making it a versatile power semiconductor for suitable switching circuits.

Key Features

• Product: TGAN80N65F2DS
• Device Type: Field Stop Trench IGBT
• Voltage Rating: 650V VCES
• Continuous Collector Current: 80A at TC = 100°C
• Continuous Collector Current: 160A at TC = 25°C
• Pulsed Collector Current: 240A
• Gate-Emitter Voltage: ±20V
• Operating Junction Temperature: -55°C to 175°C
• Package: TO-3PN
• Low switching loss over a wide temperature range
• Positive temperature coefficient
• Easy parallel operation
• RoHS compliant
• JEDEC qualified
• Suitable for UPS, inverter, solar, and welding applications

Suitable Applications

• Inverter Welding Machines
• Solar Inverters
• UPS Systems
• Power Inverters
• High-Power Switching Circuits
• Power Conversion Equipment
• Industrial Power Electronics
• Electronic Repair and Replacement
• Welding Machine PCB Repair
• Inverter PCB Repair

Important Buying and Replacement Note

Please verify the complete part number, package type, electrical ratings, pin configuration, and datasheet specifications before ordering or replacing the device. The stated 80A rating refers to the continuous collector current at a case temperature of 100°C; the datasheet also specifies 160A at 25°C. Actual usable current depends on operating temperature, switching conditions, thermal design, and the complete application.
