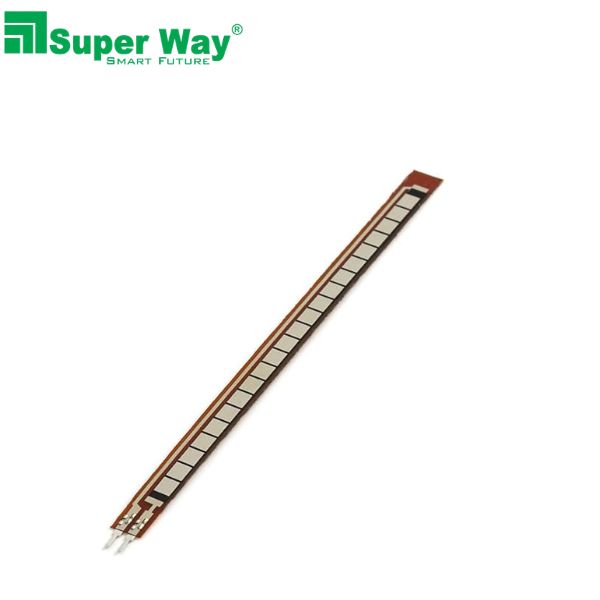

4.5 Inch Flex Sensor

4.5 Inch Flex Sensor – Flexible Bend and Resistive Sensor

The 4.5 Inch Flex Sensor is a flexible resistive sensor designed to detect bending and flexing by producing a change in electrical resistance. Also commonly known as a Flex Resistive Sensor, Bend Sensor, or Flexible Resistor, this component is useful in electronic applications where the physical movement or bending of an object needs to be converted into an electrical signal.

The Superway 4.5 Inch Flex Sensor works as a variable analog resistor.  When the sensor is in a flat or relatively straight position, it has a lower resistance value. As the sensor is bent, its internal resistive material changes characteristics, resulting in an increase in resistance. Superway 4.5 Inch Flex Sensor This change can be measured by an electronic circuit or microcontroller and interpreted as an indication of bending or movement.

Because of this operating principle, the sensor can be used in applications such as robotics, gesture recognition, wearable electronics, interactive devices, and experimental motion-sensing systems .Superway 4.5 Inch Flex Sensor  It is particularly useful for developers and hobbyists who want to detect the movement of fingers, joints, robotic mechanisms, or other flexible structures.

How Does a Flex Sensor Work?

A flex sensor functions by changing its electrical resistance when it is physically bent. In a flat position, the sensor typically has a nominal resistance of around 10K Ohms, depending on the specific sensor design. .Superway 4.5 Inch Flex Sensor When the strip is bent, the resistive elements inside the sensor are affected, causing the resistance to increase.

The exact resistance produced during bending depends on factors such as the bending angle, sensor construction, mechanical conditions, and electrical measurement method. .Superway 4.5 Inch Flex Sensor In typical applications, the resistance may rise significantly as the sensor is progressively bent. Some versions may demonstrate bend resistance values in the approximate range of 60KΩ to 110KΩ, depending on the curvature and operating conditions.

The changing resistance can be measured using a voltage divider circuit. A microcontroller such as an Arduino can read the resulting analog voltage and convert it into useful information about the degree of bending. With appropriate calibration, the measured values can be used to estimate relative bend position or movement.

4.5-Inch Flexible Design

The 4.5-inch format provides a useful sensing length for applications where movement needs to be detected over a longer flexible surface. The sensor can be positioned along a finger, joint, robotic mechanism, or other moving structure to monitor bending.

The flexible construction allows the sensor to respond to physical changes in its shape. .Superway 4.5 Inch Flex Sensor It can be used in prototypes and experimental devices where traditional rigid sensors may not be suitable.

The Superway 4.5 Inch Flex Sensor is therefore a practical choice for makers and developers working on projects that require flexible movement detection.

Arduino and Microcontroller Applications

One of the most common uses for a flex sensor is with Arduino and other microcontroller development platforms. .Superway 4.5 Inch Flex Sensor The sensor can be connected to an analog input through a suitable resistor divider circuit. When the sensor bends, the resistance changes, causing a corresponding change in the analog voltage.

The microcontroller can read this analog value and use it as an input for controlling another device. For example, bending the sensor could be used to change the brightness of an LED, control the speed of a motor, adjust a servo position, or trigger a specific software function.

The Superway 4.5 Inch Flex Sensor can be a useful component for students, electronics enthusiasts, makers, and developers who want to experiment with analog sensing and physical movement detection.

Robotics and Robotic Joint Measurement

Flex sensors are also useful in robotics and motion-control experiments. A sensor can be positioned around or near a robotic joint to detect changes in bending or movement. The resistance value can then be read by a controller and used to estimate the relative position of the joint.

This makes the sensor suitable for experimental robotic arms, articulated mechanisms, robotic hands, and other motion-based projects. The Superway Flex Sensor can help developers explore methods of detecting mechanical movement using simple resistive sensing technology.

For precision industrial robotics, however, a dedicated position encoder or industrial-grade angle sensor may be more appropriate. Flex sensors are generally better suited for prototyping, educational projects, and applications where relative movement detection is sufficient.

Gesture Recognition and Smart Gloves

Another important application of flex sensors is hand gesture recognition. A sensor can be attached to or integrated into a glove to monitor the bending of fingers. When a user moves their fingers, the resistance of the sensor changes. Multiple sensors can be used together to detect different finger positions.

This concept can be used to develop experimental smart gloves, gesture-controlled interfaces, and human-machine interaction systems. Each sensor can provide an analog signal representing the bending of a particular finger.

The Superway 4.5 Inch Flex Sensor can therefore be considered for prototype projects involving gesture control, interactive interfaces, and wearable electronics.

VR and Wearable Electronics

Flex sensors are also suitable for experimental virtual reality and wearable technology applications. By monitoring the bending of fingers or joints, they can provide input information to an electronic control system.

In VR or AR glove prototypes, multiple bend sensors may be placed on different fingers to detect hand movements. The resulting data can be processed by a microcontroller or computer system to interpret gestures and movements.

The Superway 4.5 Inch Flex Sensor is suitable for developers who want to explore flexible sensing concepts in wearable and interactive electronics.

Variable Resistance and Analog Sensing

Unlike a simple on/off switch, a flex sensor provides a variable resistance that changes according to the amount of bending. This makes it possible to detect more than just two states.

For example, a project may distinguish between a straight position, slightly bent position, and highly bent position. The exact relationship between resistance and bending angle may not be perfectly linear, so calibration is often recommended when the sensor is used for angle estimation.

By creating a calibration table or using software mapping, developers can convert measured resistance or analog readings into useful bend information.

Applications

The Superway 4.5 Inch Flex Sensor can be used for a wide range of electronics and development applications, including:

• Arduino projects
• Microcontroller-based systems
• Robotics and robotic arms
• Robotic joint movement detection
• Gesture recognition
• Smart glove development
• VR and AR glove prototypes
• Wearable electronics
• Human-machine interfaces
• Interactive control systems
• IoT prototypes
• DIY electronics
• Educational electronics projects
• Motion and bend detection
• Experimental sensor systems

Easy Integration into Electronic Projects

The sensor can be incorporated into electronic circuits using a suitable resistance measurement configuration. A common approach is to use the flex sensor with a fixed resistor in a voltage divider circuit. The resulting voltage changes as the sensor bends.

A microcontroller can then measure the analog voltage and process the reading. Depending on the application, software can be used to smooth the readings, calibrate the sensor, or map the values to a desired output.

The Superway 4.5 Inch Flex Sensor can therefore be used as an input component in a wide variety of prototype designs.

Important Usage Considerations

For reliable operation, the sensor should be installed carefully and should not be subjected to excessive bending beyond its intended mechanical limits. Repeated extreme bending may affect sensor performance or reduce its service life.

Because flex sensors can have variations between individual units, calibration may be required for applications that need accurate bend-angle estimation. Environmental conditions and mechanical mounting can also influence the resistance readings.

Users should select the appropriate circuit and measurement method according to the requirements of their application.

Why Choose Superway 4.5 Inch Flex Sensor?

The Superway 4.5 Inch Flex Sensor provides a simple and flexible method for detecting bending and physical movement in electronic projects. Its variable resistance principle makes it easy to interface with analog measurement circuits and microcontrollers.

From robotics and Arduino projects to wearable technology, smart gloves, and gesture recognition systems, the sensor offers developers a practical way to experiment with flexible movement sensing.

The Superway Flex Sensor is particularly useful for students, hobbyists, makers, engineers, and product developers who are building prototypes that require bend detection. Its flexible design allows it to be incorporated into projects where movement needs to be measured without using a conventional rigid mechanical sensor.

Conclusion

The Superway 4.5 Inch Flex Sensor is a versatile Bend Sensor designed to detect physical bending through changes in electrical resistance. With a typical flat resistance of approximately 10KΩ and a significantly higher resistance when bent, it can be used as a variable analog input for a wide range of applications.

From Arduino and microcontroller projects to robotics, smart gloves, gesture recognition, wearable electronics, and VR prototypes, this flexible sensor provides an effective solution for detecting relative bending and movement.

The Superway 4.5 Inch Flex Sensor is an excellent choice for anyone looking to add flexible bend detection to an electronic prototype or sensor-based project. Its simple variable-resistance operation, flexible form factor, and broad application potential make it a useful component for DIY electronics, education, robotics development, and innovative interactive technology projects.
