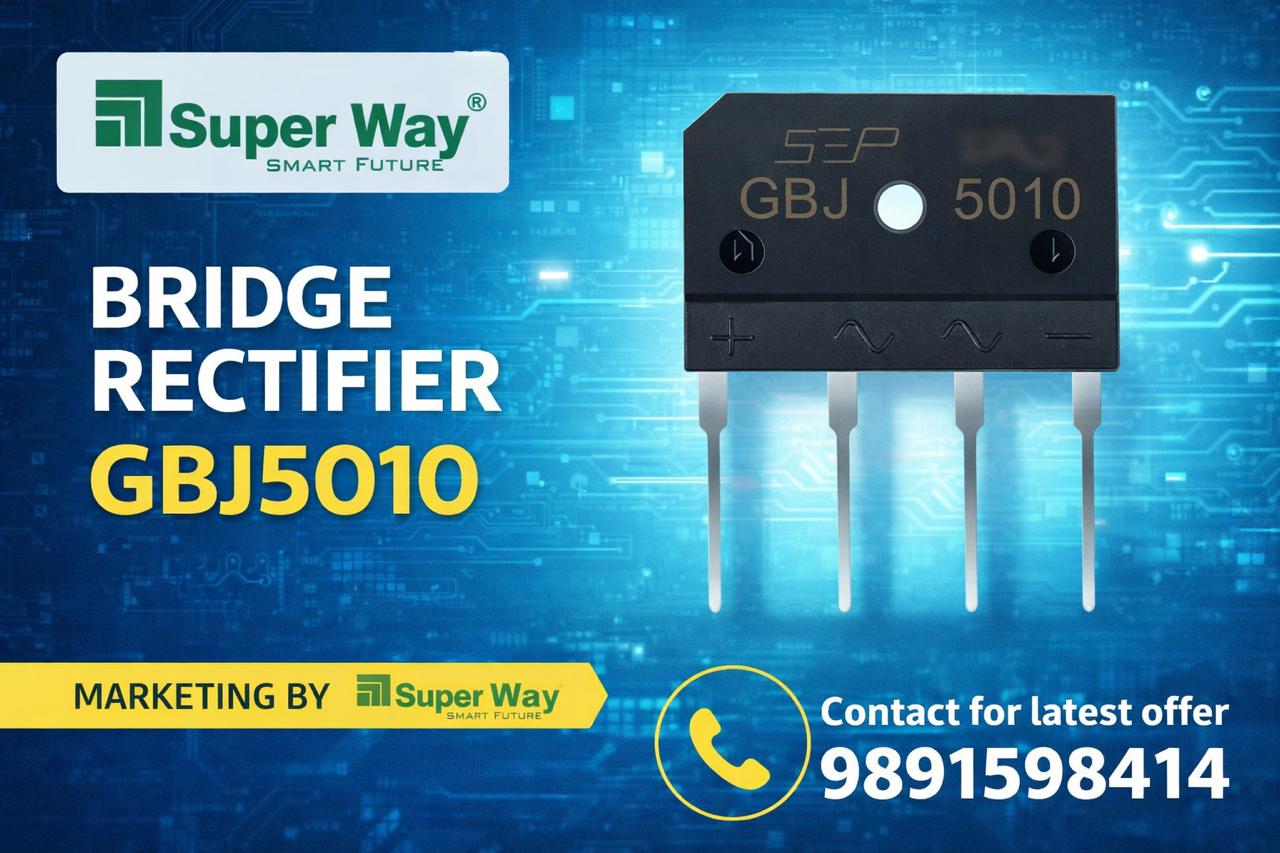

GBJ5010 Bridge Rectifier

The GBJ5010 Bridge Rectifier is an electronic component used to convert AC (Alternating Current) into DC (Direct Current). Many electronic devices and circuits need DC power to operate, but the electricity supplied from the mains is AC. A bridge rectifier is used to convert this AC power into DC power so electronic devices can work properly.
The GBJ5010 is a high power bridge rectifier designed to handle up to 50 Amps of current and a maximum voltage of 1000 Volts. Because of this high current capacity, it is widely used in power supply circuits, battery chargers, welding machines, motor drives, inverters, and other heavy electrical equipment.
This bridge rectifier contains four powerful diodes connected in a bridge configuration inside a single package. This design makes the component compact, easy to install, and very reliable for power conversion applications.

What is a Bridge Rectifier?

A bridge rectifier is an electronic device used to convert AC voltage into DC voltage.
AC current changes direction continuously, but most electronic circuits require current to flow in only one direction. The bridge rectifier solves this problem.
Inside the rectifier, four diodes are connected in a bridge circuit. These diodes control the direction of current so that the output current flows in only one direction.
Because of this process, the AC input becomes DC output. This DC voltage can then be used by electronic circuits or stored in batteries.
Bridge rectifiers are commonly used in power supply systems, adapters, and charging circuits.

Design and Construction

The GBJ5010 Bridge Rectifier is designed with a strong and durable body that can handle high current and heat.

The component comes in a GBJ package, which is commonly used for high power rectifiers. The body is made from strong molded material that protects the internal diodes from damage.

The rectifier has four terminals, which are clearly marked to make installation easy.

The terminals are:

~ AC input
~ AC input
+ Positive DC output
– Negative DC output

The clear terminal marking helps users connect the rectifier correctly in circuits.

Because the rectifier handles high current, it is usually installed with a heat sink or metal surface to help remove heat and maintain stable operation.

Working Principle

The GBJ5010 Bridge Rectifier works using four internal diodes arranged in a bridge configuration.
When AC voltage is supplied to the rectifier, current flows through different pairs of diodes during each half cycle of the AC signal.
During the positive half cycle, two diodes conduct current and allow electricity to pass through the load.
During the negative half cycle, the other two diodes conduct current.
Even though the AC input changes direction, the bridge rectifier ensures that the output current flows in one direction only.
Because of this process, the output becomes pulsating DC voltage.
In many circuits, capacitors or filters are added after the rectifier to smooth the DC output.

Applications of GBJ5010 Bridge Rectifier

The GBJ5010 Bridge Rectifier is used in many electrical and electronic systems that require high power AC to DC conversion.
One common application is in power supply circuits. Many electronic devices require DC voltage to operate, so bridge rectifiers are used to convert AC power into DC power.
It is also widely used in battery charging systems where AC power needs to be converted into DC voltage for charging batteries.
Another important application is in welding machines, where high current rectification is required.
The rectifier is also used in motor control circuits and motor drives, where DC power is required for motor operation.
It can also be found in inverters, UPS systems, LED power supplies, and industrial equipment.
Because of its high current capacity, the GBJ5010 is ideal for heavy power applications.

Advantages of GBJ5010 Bridge Rectifier

The GBJ5010 Bridge Rectifier offers many advantages that make it a popular choice for power electronics.
One of its main advantages is the high current capacity of 50 Amps, which allows it to handle heavy electrical loads.
Another advantage is the high voltage rating of 1000 Volts, which makes it suitable for many power supply circuits.
The bridge rectifier design also reduces circuit complexity because it replaces four separate diodes with one single component.
The strong construction ensures long life, stable performance, and reliable operation.
Because of its simple installation and compact design, it is widely used in many electronic and industrial applications.

Installation and Usage

Installing the GBJ5010 Bridge Rectifier is simple when the terminal markings are followed.
First, connect the AC input voltage to the two terminals marked with ~.
Next, connect the positive (+) and negative (–) terminals to the DC output circuit.
If the rectifier is used in high current circuits, it should be mounted on a heat sink to improve cooling and maintain good performance.
Before powering the circuit, always check the connections to make sure the wiring is correct.

Specifications

Product Type: Bridge Rectifier

Model Number: GBJ5010

Maximum Average Forward Current: 50 Amps

Peak Reverse Voltage: 1000 Volts

Rectifier Type: Single Phase Bridge Rectifier

Number of Terminals: 4

Terminal Type: AC, AC, Positive (+), Negative (–)

Package Type: GBJ Package

Cooling Method: Heat sink recommended

Application Type: High power AC to DC conversion

Why Choose Superway GBJ5010 Bridge Rectifier?

At Superway, we provide high quality electronic components designed for reliable performance.

Our GBJ5010 Bridge Rectifier is tested for durability and stable operation. It is suitable for high power circuits and heavy electrical applications.
