KBP210 Bridge Rectifier

Superway KBP210 Bridge Rectifier

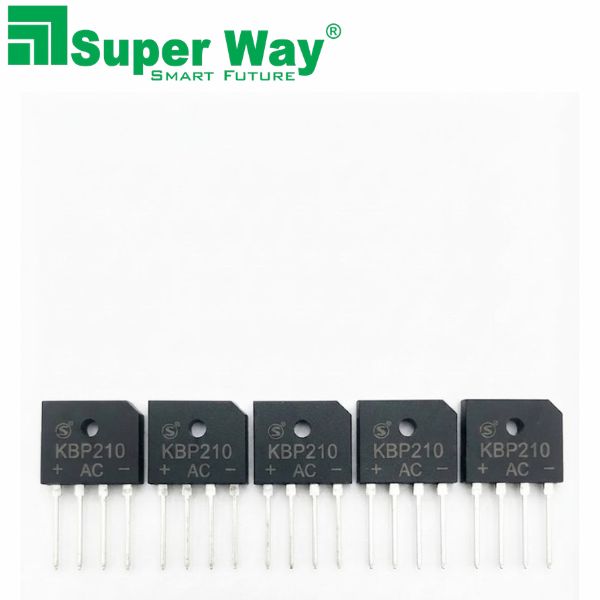

The Superway KBP210 Bridge Rectifier is a compact and reliable 2A 1000V single-phase bridge rectifier diode designed for AC to DC power conversion. With its 2A current capability, 1000V voltage rating and four-pin KBP package, the Superway KBP210 Bridge Rectifier is suitable for a wide range of electronic power supplies, PCB assemblies, repair applications and DIY electronics projects.

The KBP210 is commonly specified as a 2A, 1000V single-phase silicon bridge rectifier. Published datasheet information identifies the component as a four-pin KBP bridge rectifier designed for printed circuit board applications.

The primary function of the Superway KBP210 Bridge Rectifier is to convert alternating current (AC) into direct current (DC). Its full-wave bridge configuration uses four internal rectifier elements to rectify both halves of the AC waveform. This makes the Superway KBP210 Bridge Rectifier a useful component for the rectification stage of suitable power supply circuits.

With a 2A average forward current rating, the Superway KBP210 Bridge Rectifier is suitable for low- and medium-power electronic applications where the required current remains within the component’s specified operating conditions. Actual current capability depends on ambient temperature, PCB layout, mounting conditions, load characteristics and thermal management.

The 1000V voltage rating provides the Superway KBP210 Bridge Rectifier with a high reverse-voltage capability for suitable rectification applications. Published specifications identify the KBP210 with a 1000V repetitive peak reverse voltage and 1000V DC blocking voltage.

Another useful characteristic of the Superway KBP210 Bridge Rectifier is its surge-current capability. A published KBP210 datasheet specifies a 45A peak forward surge current under its defined test conditions. This helps the rectifier tolerate short-duration startup or inrush currents, although the actual surge performance depends on the exact component and circuit conditions.

The referenced KBP210 datasheet specifies a maximum forward voltage of approximately 1.10V at 2A. Forward voltage contributes to power dissipation during operation, so thermal conditions should be considered when operating the bridge rectifier continuously near its rated current.

The Superway KBP210 Bridge Rectifier uses a compact four-pin KBP molded-plastic package designed for through-hole PCB mounting. The package has polarity markings on the body to help identify the AC input and positive/negative DC terminals. Published specifications describe the KBP package as suitable for printed circuit boards.

The Superway KBP210 Bridge Rectifier can be used in a wide range of electronic applications. Common applications include SMPS power supplies, general-purpose power supplies, UPS systems, inverters, battery chargers, LED power supplies, consumer electronics, home appliances, control boards and electronic repair equipment.

For power supply repair, the Superway KBP210 Bridge Rectifier can be used as a replacement when the original bridge rectifier has compatible electrical and mechanical specifications. Before replacement, users should verify the required current rating, reverse-voltage rating, package dimensions, terminal configuration and thermal requirements.

The Superway KBP210 Bridge Rectifier is also useful for DIY and educational electronics projects. Its standard four-pin bridge configuration makes it suitable for learning and experimenting with AC to DC rectification in appropriately designed circuits.

For continuous operation, appropriate thermal management should be considered. A published KBP210 datasheet gives a junction-temperature range of -55°C to +150°C and a thermal-resistance specification for its referenced package.

The Superway KBP210 Bridge Rectifier provides a practical combination of 2A current capability, 1000V voltage rating, high surge-current capability and compact through-hole construction. These characteristics make it suitable for many electronic AC to DC conversion and repair applications.

Whether you are repairing a PCB power supply, designing an SMPS, working on an inverter, building a battery charger or developing an electronics project, the Superway KBP210 Bridge Rectifier offers a dependable rectification solution when correctly matched to the circuit.

Superway KBP210 Bridge Rectifier is suitable for technicians, engineers, manufacturers, repair professionals and electronics hobbyists looking for a compact 2A 1000V bridge rectifier for suitable power conversion applications.
