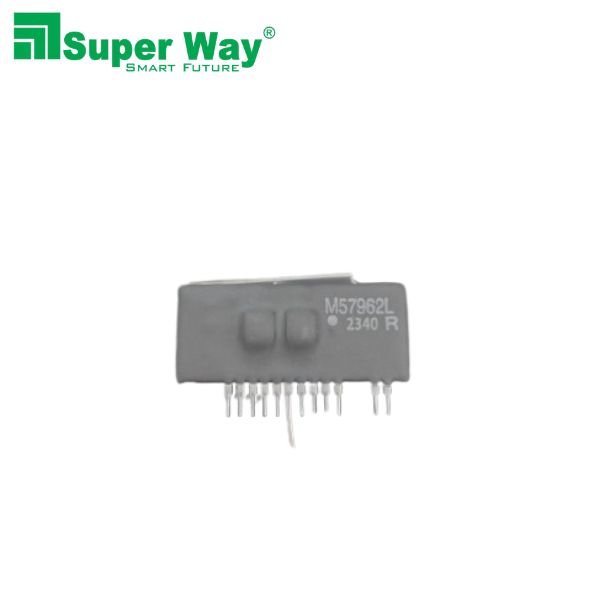

• The M57962L Hybrid IC is a high-performance hybrid integrated circuit specially designed for driving N-channel IGBT modules in industrial power electronics applications. This reliable gate driver IC is widely used in inverter systems, UPS equipment, AC servo drives, welding machines, frequency converters, and various industrial control systems. M57962L Hybrid IC It combines isolation, protection, and gate drive functions in a single compact package, making it an ideal solution for engineers and technicians who require stable and efficient IGBT control.
• The M57962L Hybrid IC is manufactured to provide excellent electrical isolation between the input and output stages. M57962L Hybrid IC This isolation is achieved through a built-in opto-coupler that protects sensitive control circuits from high-voltage power sections. M57962L Hybrid IC The integrated design helps improve system reliability while reducing the number of external components required in the circuit. As a result, designers can create compact and cost-effective power control systems.
• One of the key advantages of the M57962L Hybrid IC is its built-in short-circuit protection capability. M57962L Hybrid IC The device includes a desaturation detection circuit that continuously monitors the operating condition of the IGBT module. If an abnormal current condition or short circuit occurs, the protection circuit quickly responds and generates a fault output signal. This feature helps prevent damage to expensive power semiconductors and improves the overall safety of the system.
• The M57962L Hybrid IC supports TTL-compatible input signals, allowing easy connection with microcontrollers, DSP controllers, PLC systems, and digital control circuits. This compatibility simplifies system integration and ensures reliable communication between the control and power stages. The IC is designed to operate with a two-supply drive topology, providing efficient gate control for IGBT modules in demanding industrial environments.
• Another important feature of the M57962L Hybrid IC is its high common-mode rejection performance. The built-in opto-coupler offers high CMRR characteristics, helping the IC maintain stable operation even in electrically noisy environments. This makes the device suitable for high-frequency switching applications where electrical interference can affect system performance.
• The M57962L Hybrid IC is commonly used in inverter systems for motor control and power conversion. In industrial automation systems, it provides reliable gate drive signals for IGBT modules used in AC motor drives and servo systems. The IC is also widely found in UPS systems where efficient switching and protection are essential for maintaining uninterrupted power delivery. Additionally, many welding machine manufacturers use the M57962L Hybrid IC because of its reliable operation, isolation capability, and built-in protection functions.
• The device is designed to support a wide range of IGBT modules. It can be used with 600V, 1200V, and 1400V class IGBT modules, making it suitable for various industrial power applications. This flexibility allows engineers to use the same driver IC across multiple product designs and power levels.
• For industrial equipment manufacturers, the M57962L Hybrid IC offers several benefits including improved system reliability, simplified circuit design, enhanced protection, and reduced component count. Its integrated architecture helps minimize PCB space while maintaining excellent electrical performance. The combination of isolation, fault detection, and gate drive functions makes it a trusted solution for modern power electronic systems.
• The M57962L Hybrid IC operates with recommended supply voltages around +15V and -10V, providing suitable gate drive levels for efficient IGBT switching. The device delivers fast switching performance with low propagation delay, helping improve system efficiency and reduce switching losses. These characteristics make it suitable for high-speed inverter and motor control applications.
• Because of its proven performance and industrial reliability, the M57962L Hybrid IC remains a popular choice for maintenance engineers, repair technicians, and equipment manufacturers. Whether used in welding machines, industrial inverters, servo drives, UPS systems, or power conversion equipment, this hybrid IC delivers dependable operation and excellent protection for IGBT modules.
• The M57962L Hybrid IC is an ideal solution for applications that require electrical isolation, fault protection, and reliable IGBT gate driving in a compact package. Its robust design and industrial-grade performance make it a valuable component in modern power electronics and automation systems.
